Description
MACHINIST Official Store Statement
>>For the tariff problem, please make sure you can solve the customs clearance problem by yourself, if you can't solve it, we do not recommend you to buy goods in our store. We are not responsible for customs duties. Thanks for your understanding.
1: What's in the package?

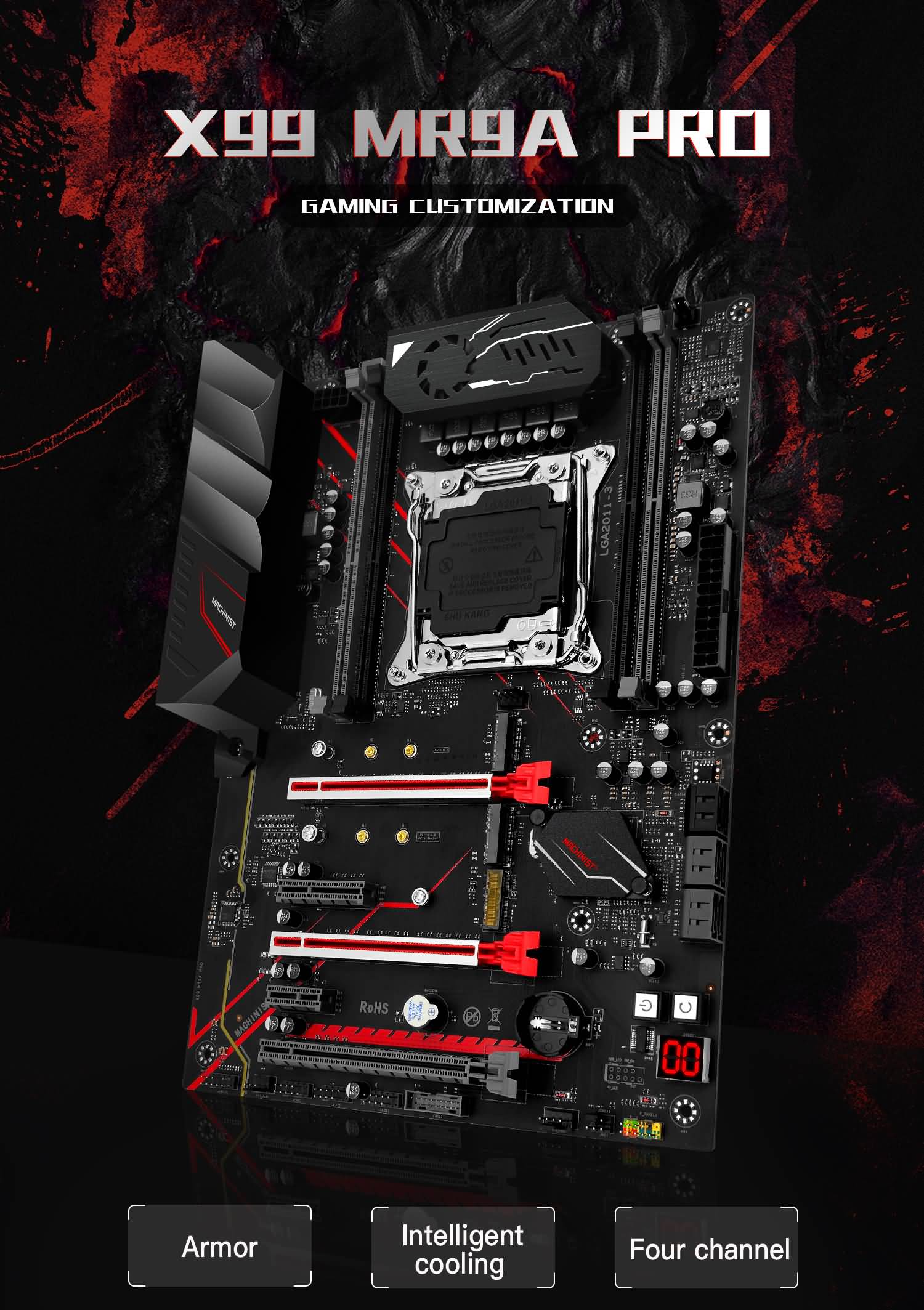

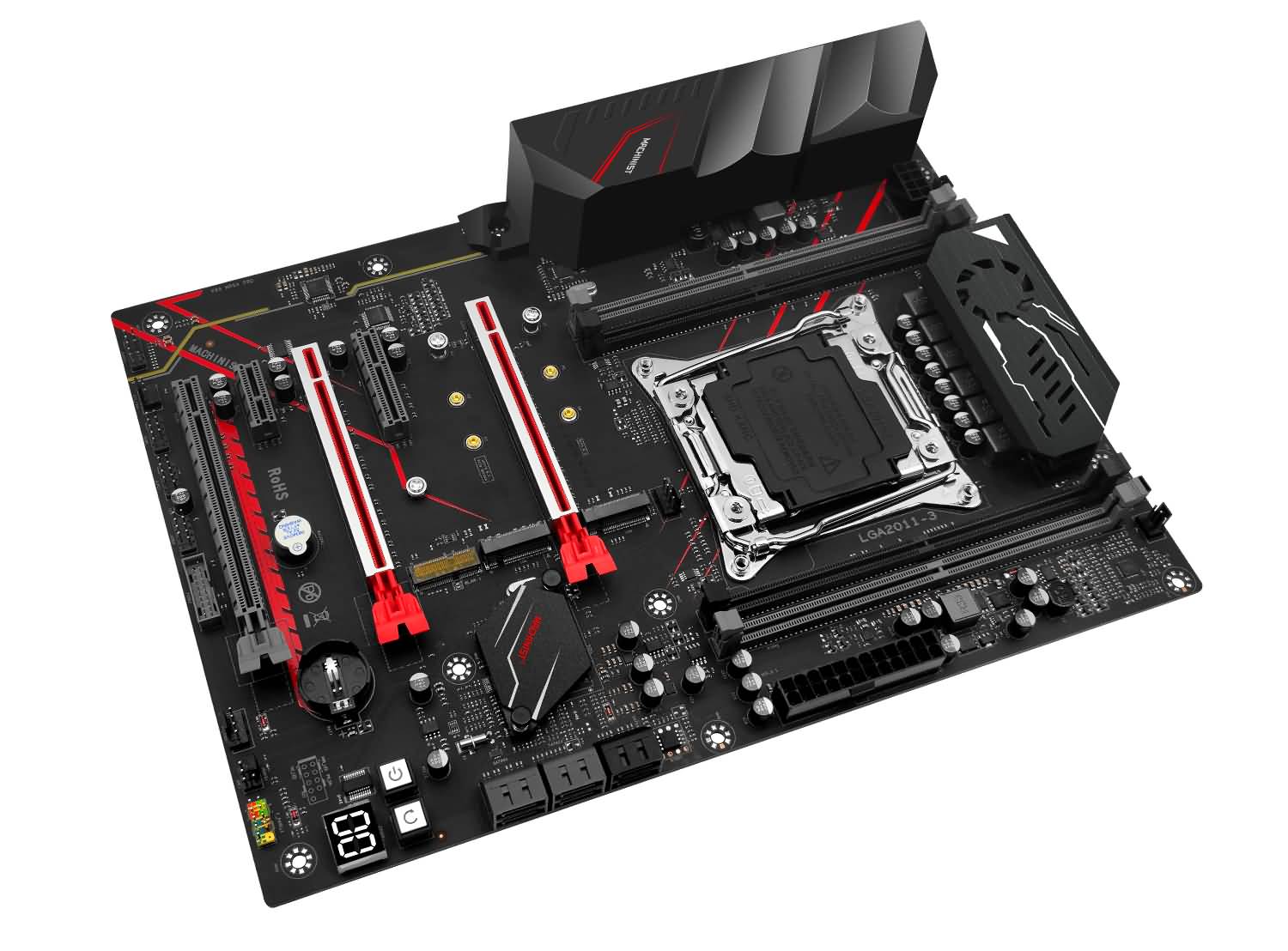

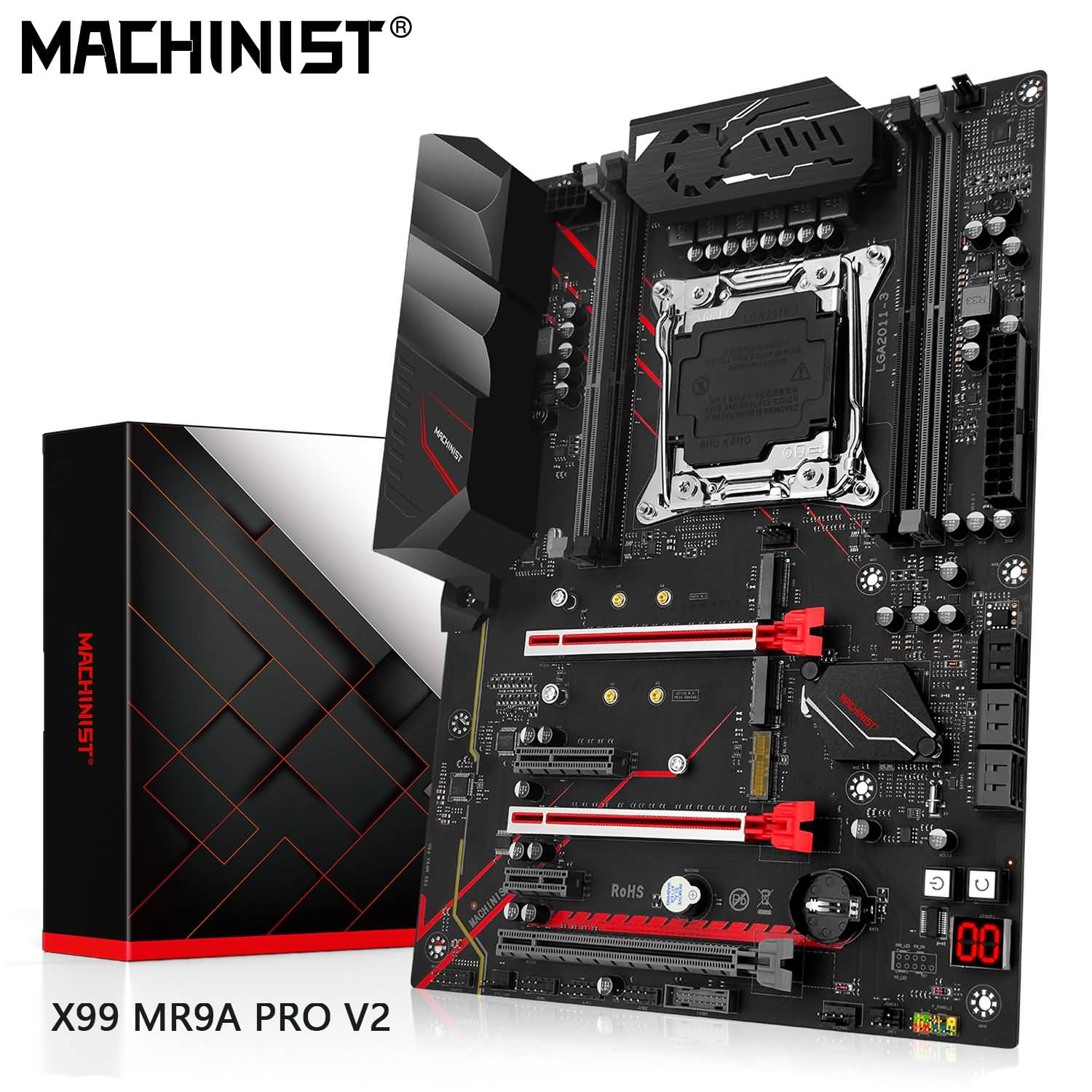

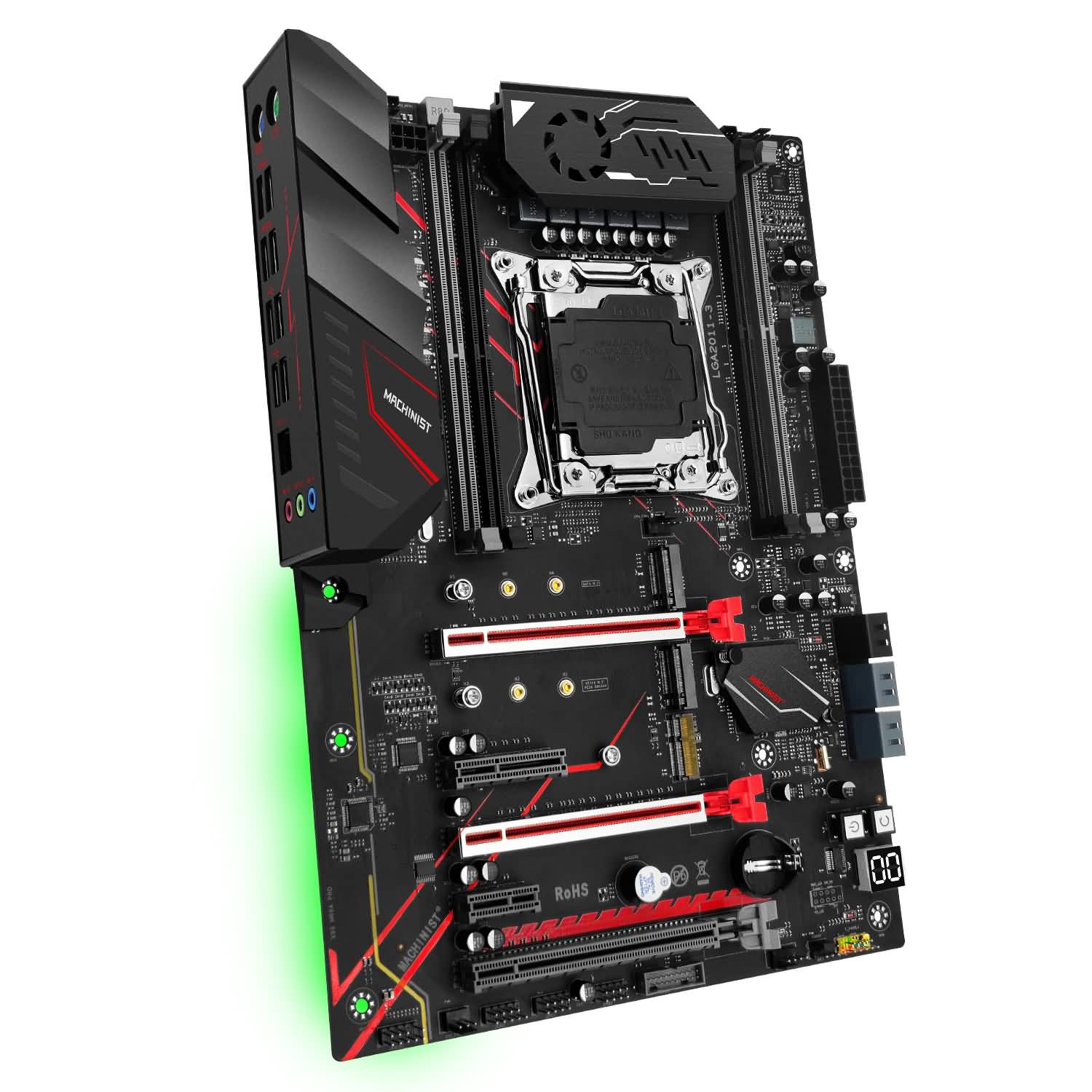

Main products: MACHINIST X99 MR9A PRO V2 motherboard*1

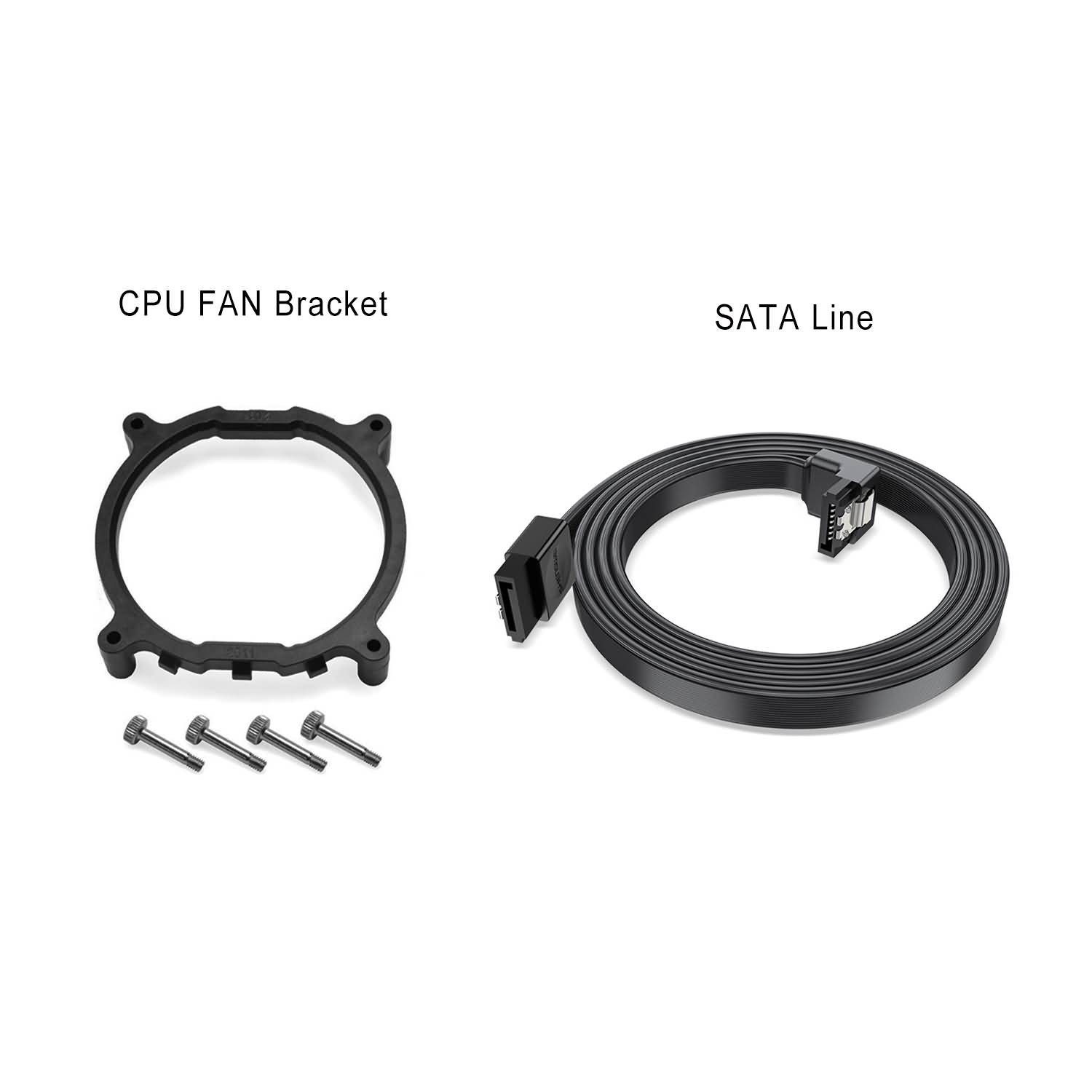

Gift accessories: i/o shield, CPU cooling bracket, sata cable (all are hand-tested and packaged, there may be omissions, please forgive me!);
MACHINIST Product Details
>>Specifications:
Processor: Support Intel LGA2011-3 pin series processors;
South Bridge: B85 Chipset series;
>>memory
Technology: Quad-channel DDR4 233200/266/3000/3200MHz;
Maximum capacity: 128GB;
Memory slot: 4 * 288 PIN ECC/DDR4;

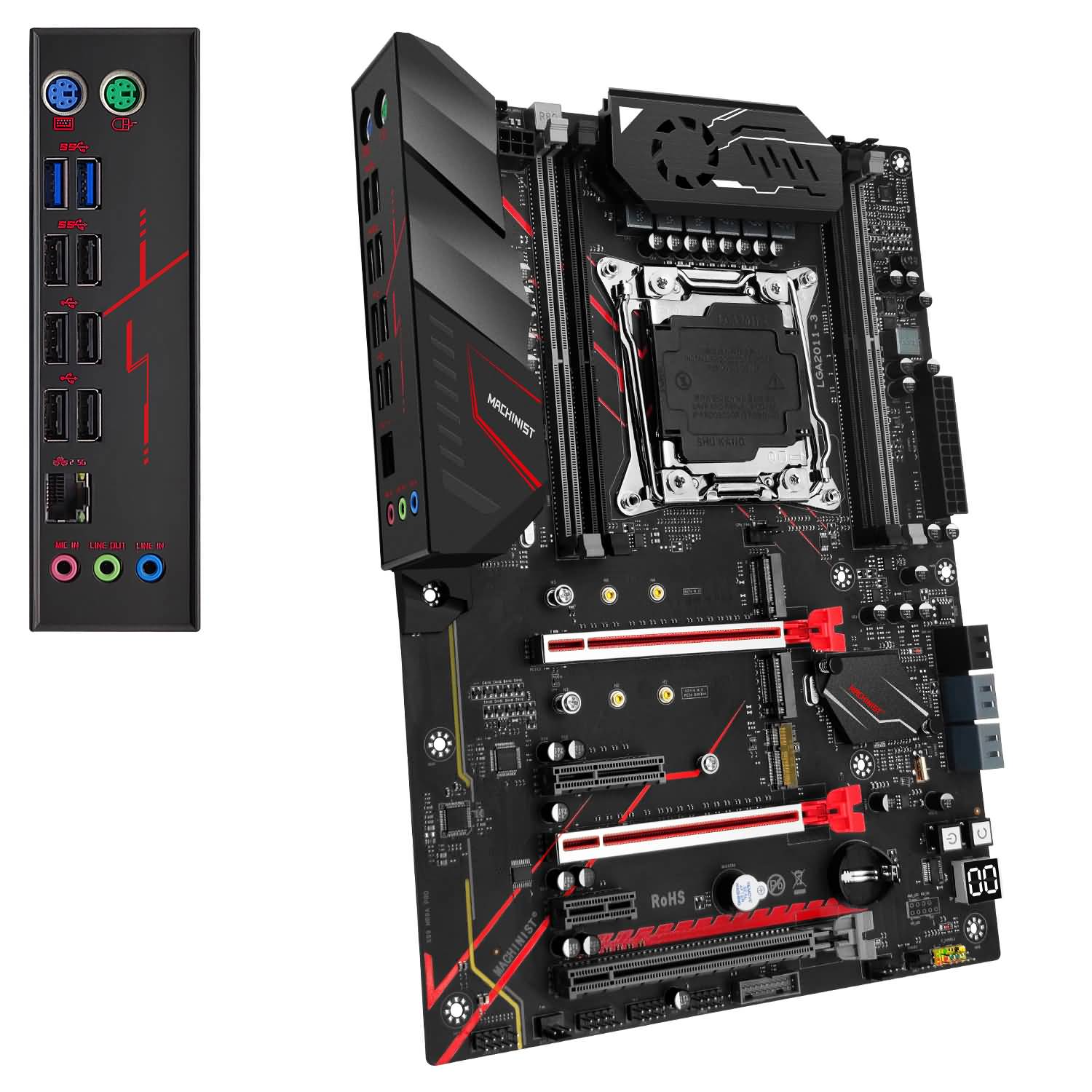

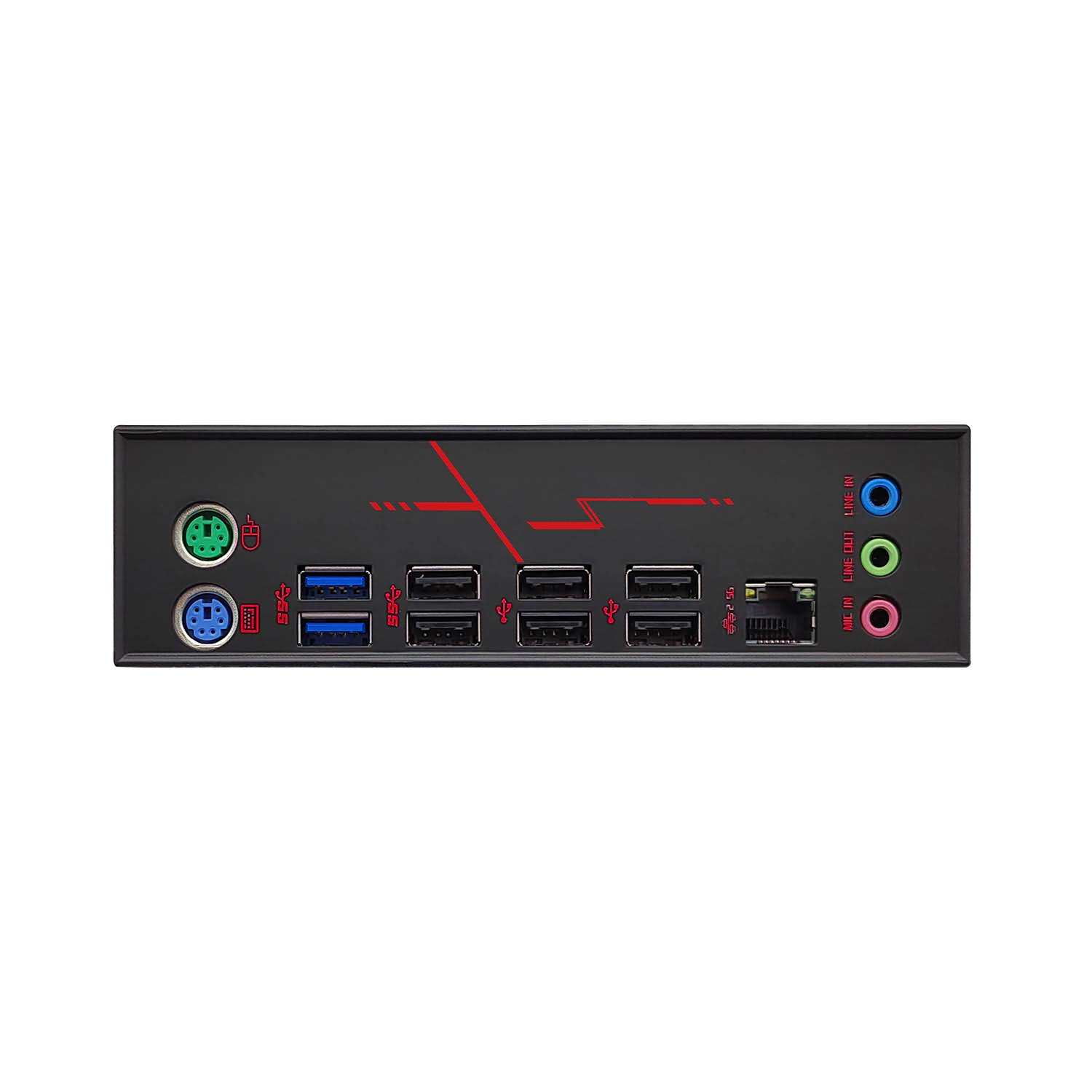

>> Rear l/O:
USB port: 2 USB 3.0; 6 USB 2.0;
Audio: 1 0Mic-in. Line-out, Line-in);
Ethernet: 1 Realtek Gigabit LAN;
PS/2: 1 KB interface and 1 MS interface;

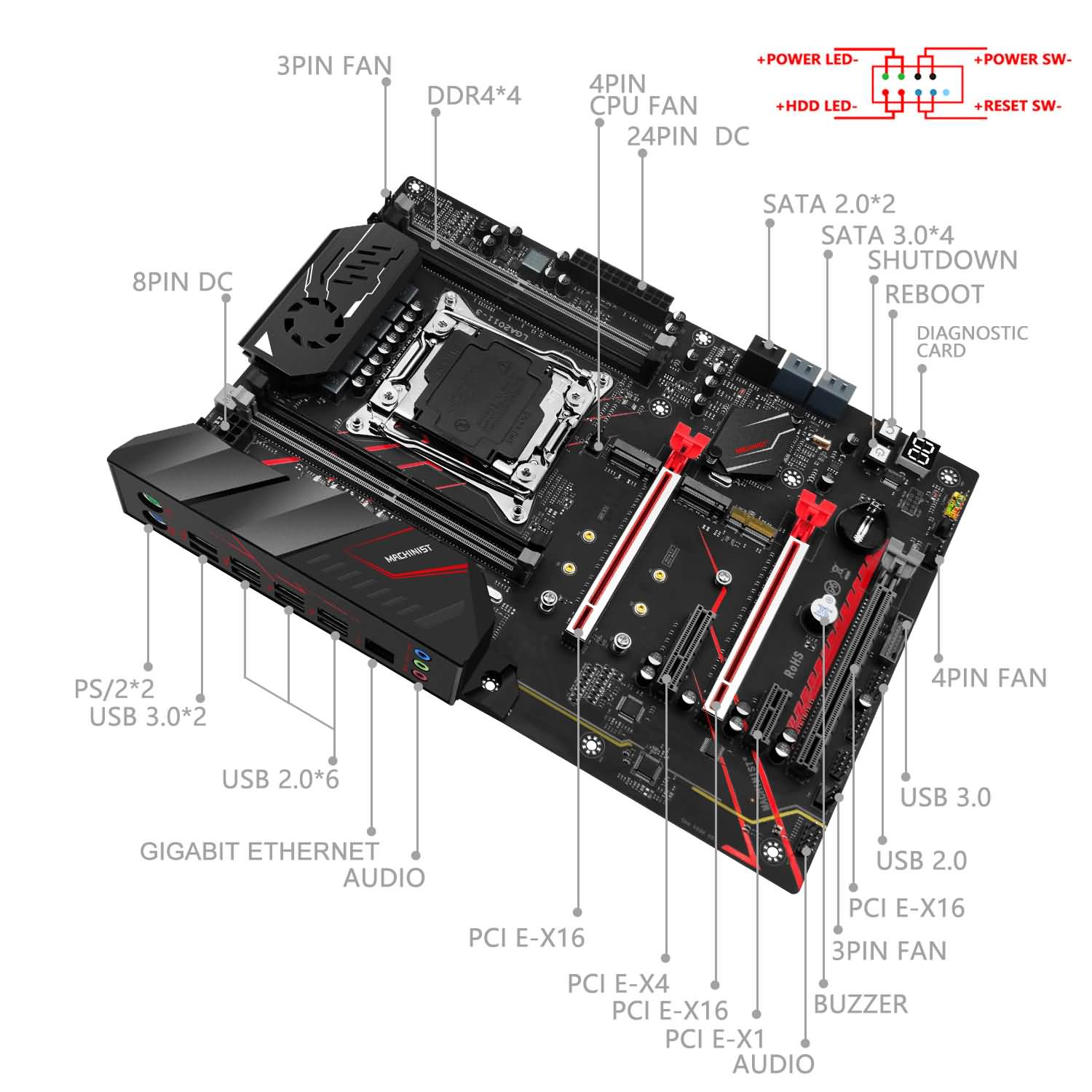

>>Internal connector
USB 2.0: 2 (one FUSB can transfer two USB 2.0 ports);
USB 3.0: 2 (one FUSB can transfer two USB 3.0 ports);
Serial port: 1 2x5Pin pin;
FAN: 4 (1*CFAN+-3*SFAN);
PCIe: 5 (3 PCIe x16; 1 PCIe x4; 1 PCIe x1);
SATA ports: 6 (2 SATA2. 0. 4 SATA3.0);
LAN: ATXPWR interface;
1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket;
JAudio: 1 2x5Pin pin;
Switch and restart: 2 independent buttons;
JLPC: 1 2x5Pin pin;
Diagnostic card: 1;
M.2 interface: 2 (1*PCIB protocol+1*SATA protocol);
>>Physical size
Size: 215mmx303mm;
Motherboard weight (including packaging): about 1.4kg.
Note:
(1) The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.
(2) Please allow 1-3mm differs due to manual measurement.
(3) Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
(4) This planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500w brand power supply)
(5) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
